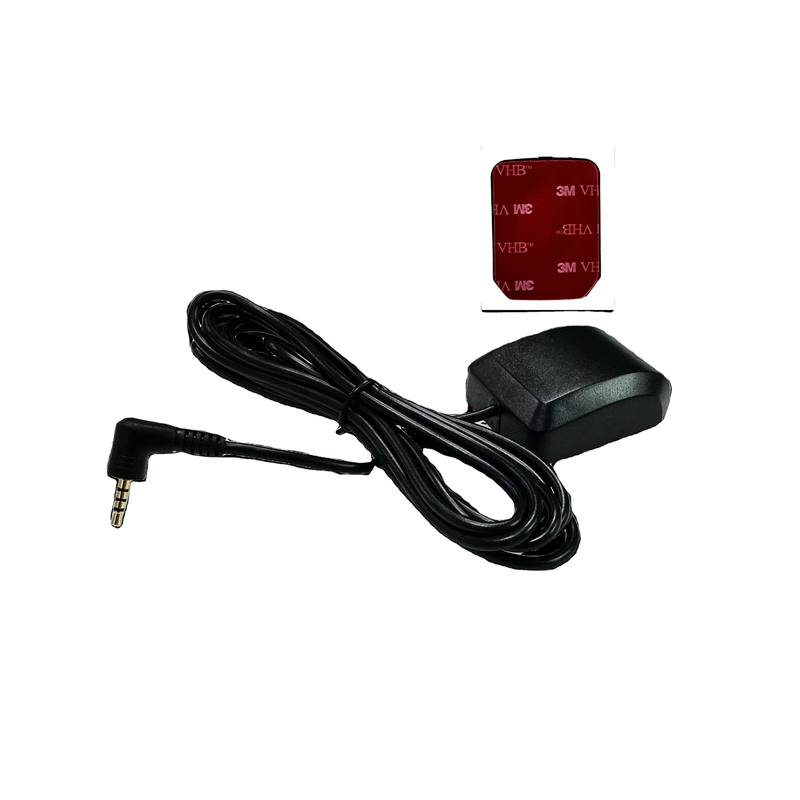

OTW GNSS Receiver with Audio Connector for Fleet Management
| Place of Origin | China |
| Model Number | WT-2828-AK-TTL-AU-3M |
GNSS Audio Connector GMouse
,GNSS GMouse GPS Receiver
,GMouse GPS Receiver for Vehicle
| Attribute | Value |
|---|---|
| Type | GNSS Receiver |
| Country of Origin | CHINA |
| Brand | OTW |
| Chipset | AT65XX |
| Application | Positioning, surveying and mapping, etc |
| Operating mode | GPS+GLONASS+GALILEO+BDS |
| Output Mode | TTL |
| Baud rate | 4800bps-921600bps, Default 9600bps |
| NMEA messages | RMC, VTG, GGA, GSA, GSV, GLL |
| Update frequency | 1Hz-10Hz (default 1Hz) |
| Voltage | 3.0V to 5.0V |
| Power consumption | 25 mA @3.3V |
| Size | 38mm*49mm*16mm |
| Wire length | 3M |
| Connector type | Audio connector |
GPS Receiver Antenna with G-Mouse for Vehicle Fleet Management UART TTL GNSS Audio Connector for Trucks and Vehicles
- Model: WT-2828-AK-TTL-AU-3M
- Chip: AT65XX
- Receiver type: GPS/QZSS L1, GLONASS L1, BeiDou B1
- Agreement: NMEA-0183 compliant protocol or custom protocol
- NMEA messages: RMC, VTG, GGA, GSA, GSV, GLL
- Available baud rate: 4800bps~921600bps (default 9600bps)
- Channel: 56
- Sensitivity: Tracking: -162dbm, Capture: -148dbm, Cold start -148dbm
- Cold start: Average 29 seconds
- Hot start: Average 1 second
- Accuracy: Horizontal accuracy 2.5m CEP, Velocity: 0.1 m/s, Timepulse signal: RMS 30 ns
- Max Height: 18000 m
- Max Speed: 500 m/s
- Max Acceleration: ≤ 4G
- Regeneration frequency: 1Hz -10 Hz
- Positioning mode: A-GNSS
- Communication type: TTL level
- Antenna: Built-in ceramic antenna
- Connector type: Audio connector
- Size: 38mm*49mm*16mm (+/- 0.5mm)
- Wire length: 3m (customizable)
- Fixed mode: 3M adhesive or magnet (default 3M adhesive)
- Voltage: 3V~5V
- Power Consume: 25mA@3.3V
- Humidity range: 5% to 95% non-condensing
- Working Temperature: -40℃ to 85℃
- Storage Temperature: -40℃ to 85℃
A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory.
A2: It usually takes about only 7-10 days on receipt of payment, depends on the quantity ordered and the stock status.
A3: No, the price is negotiable. It depends on the quantity of your order.
A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible.
A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable.
A6: Yes. We support custom requirements.
A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come.
If you would like to know more about our company, please contact us immediately.
