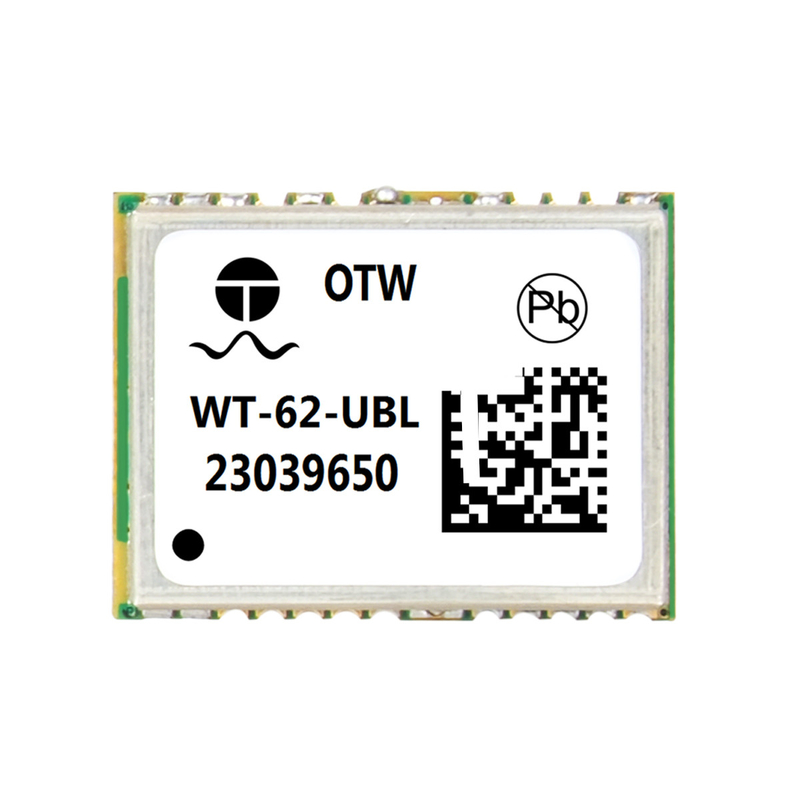

WT-62-UBL GNSS Module 9600bps GPS Tracker for Motorcycles
| Place of Origin | China |
| Brand Name | OTW |
| Model Number | WT-62-UBL |
Product Details
Model Number:
WT-62-UBL
Application:
Positioning, Surveying And Mapping, Etc
Type:
GNSS Module
Country Of Origin:
CHINA
Baud Rate:
4800bps-921600bps,Default9600bps
Update Frequency:
1Hz-10Hz(default 1Hz)
Voltage:
1.65V To 3.6V
Highlight:
Motorcycle GPS Tracking Module
,GPS Tracking Module 9600bps
,Surveying OEM GPS Module
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
US $2.4 - 11.80/
Delivery Time
7-10working days after receiving the payment
Payment Terms
T/T, Western Union
Supply Ability
Above US$100 Million
Product Description
Motorcycle GPS Tracking Module 9600bps OEM GPS Module For Surveying
Product Attributes
| Attribute | Value |
|---|---|
| Model Number | WT-62-UBL |
| Application | Positioning, surveying and mapping, etc |
| Type | GNSS Module |
| Country of Origin | CHINA |
| Baud rate | 4800bps-921600bps, Default 9600bps |
| Update frequency | 1Hz-10Hz (default 1Hz) |
| Voltage | 1.65V to 3.6V |
Overview
Applications
- Car navigation, traffic recorder
- Drones, law enforcement cameras
- HD camera, surveying and mapping
- Handheld device
- Smart wear
- Smart agriculture
Key Features
- Supports GPS/QZSS, GLONASS
- Combines low power consumption and high sensitivity
- Strong anti-interference ability
- Built-in low noise amplifier
Technical Specifications
| Chip | WT-62-UBL |
| Receiver type | GPS/QZSS L1 C/A GLONASS L1 |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| Available baud rate | 4800bps~921600bps (default 9600bps) |
| Channel | 56 |
| Sensitivity | Tracking: -162dbm Capture: -160dbm Cold start -148dbm |
| Cold start | Average 29 seconds |
| Hot start | Average 1 second |
| Accuracy | Horizontal Position: average, SBAS < 2.5m |
| Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -10 Hz |
| Port | 2 URAT 1 I2C 2 SPI |
| Physical property | 24 pin stamp holes Size: 16.0mm*12.2mm*2.4mm(+/- 0.5mm) |
| Voltage | 1.65V~3.6V |
| Power Consume | Operation mode: 17mA@3V Power saving mode: 5mA@3V |
| Operating Environment | Humidity range: 5% to 95% non-condensing Working Temperature: -40℃ to 85℃ Storage Temperature: -40℃ to 85℃ |
