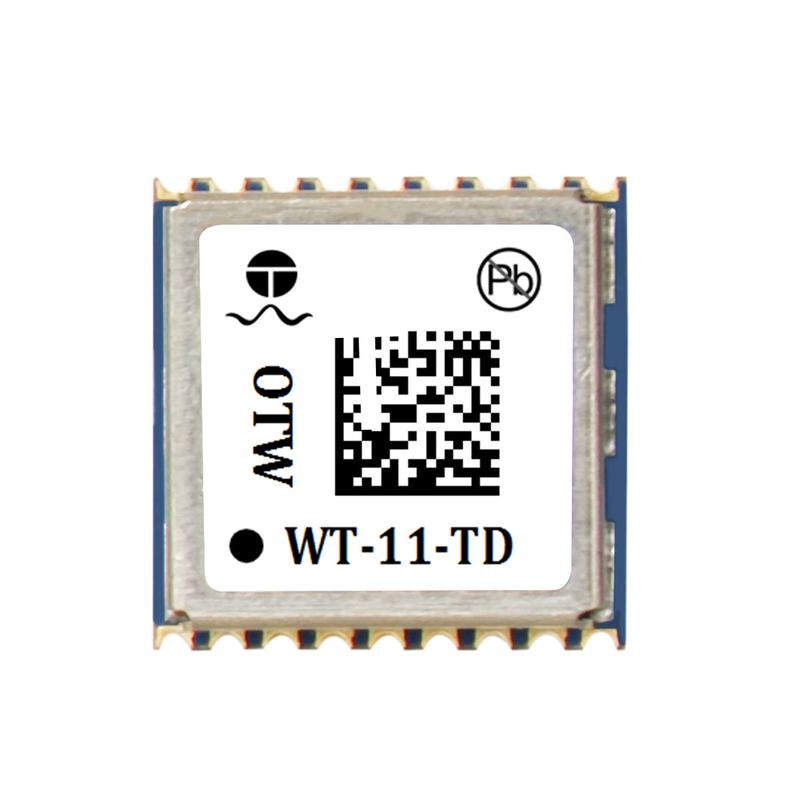

OTW WT-11-TD GNSS Module UART TTL R232 Output
| Place of Origin | China |
| Brand Name | OTW |
| Model Number | WT-11-TD |
Product Details
Model Number:
WT-11-TD
Type:
GNSS Module
Country Of Origin:
CHINA
Brand:
OTW
Output Mode:
TTL
Update Frequency:
1Hz-10Hz(default 1Hz)
Power Consumption:
Run Mode: 22mA@3V
Size:
9.7mm*10.1mm*2.4mm
Highlight:
Anti Theft GPS GNSS Tracker
,Electric Bicycle GNSS Module
,UART+TTL+R232 GNSS Module
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
US $2.4 - 11.80/
Delivery Time
7-10working days after receiving the payment
Payment Terms
T/T,Western Union
Supply Ability
Above US$100 Million
Product Description
Anti Theft GPS GNSS Tracker Electric Bicycle GNSS Module UART+TTL+R232 Output
Product Attributes
| Attribute | Value |
|---|---|
| Model Number | WT-11-TD |
| Type | GNSS Module |
| Country of Origin | CHINA |
| Brand | OTW |
| Output Mode | UART+TTL+R232 |
| Update frequency | 1Hz-10Hz(default 1Hz) |
| Power consumption | Run mode: 22mA@3V |
| Size | 9.7mm*10.1mm*2.4mm |
Product Description
Electric Bicycle Anti-Theft Using GPS Tracker with GPS Module
Overview
Applications
- Wearables, watches, bracelets
- Walkie-talkies, tablets, mobile phones
- Card machine, POS machine
- Automotive OBD, trackers, etc
Features
- Low cost, low power consumption, high performance, high cost performance, small size
- Use built-in LNA power amplifier circuit
- With antenna status detection and antenna short circuit protection
- Support for internal ephemeris
- Support D-GNSS foundation enhancement
- Support for A-GNSS assisted enhancement
- Dual UART ports
- Compatible with mainstream GPS modules of the same size
Bottom view - Module pin allocation
Module Performance Specifications
| Specification | Details |
|---|---|
| Model | WT-11-TD |
| Receiver type | BDS:B1, GPS:L1, GLONASS:L1 |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 56 |
| Sensitivity | Tracking: -163dbm, Capture: -147dbm |
| Cold start | Average 28 seconds |
| Hot start | Average 1 second |
| Accuracy | Horizontal Position: average, SBAS < 3m |
| Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -10 Hz |
| Positioning mode | A-GNSS |
Physical Properties
| Property | Details |
|---|---|
| Type | 18 pin stamp holes |
| Size | 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm) |
Power Supply
| Parameter | Details |
|---|---|
| Voltage | 1.8V~3.6V |
| Power Consumption | Operation mode: 22mA@3V, power saving mode: 5mA@3V |
Operating Environment
| Parameter | Details |
|---|---|
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
