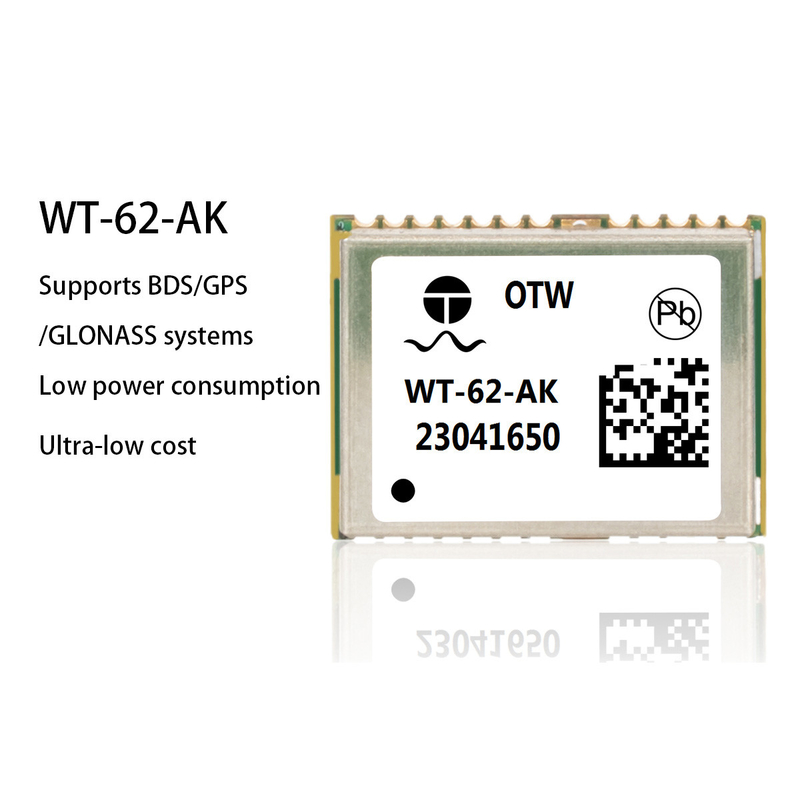

High Precision GPS Module GNSS Module For Ship Positioning And Navigation
|
High Precision GPS Module GNSS Module For Ship Positioning And Navigation
| Place of Origin | China |
| Brand Name | OTW |
| Model Number | WT-62-AK |
Product Details
Model Number:
WT-62-AK
Type:
GNSS Module
Country Of Origin:
CHINA
NMEA Messages:
RMC,VTG,GGA,GSA,GSV,GLL
Voltage:
1.8V To 3.6V
Power Consumption:
23 MA , @3.3V
Size:
12.2mm*16mm*2.4mm
Highlight:
High Precision GPS Module GNSS
,Ship Positioning GNSS Module
,Navigation GNSS Module
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
US $2.4 - 11.80/
Delivery Time
7-10working days after receiving the payment
Payment Terms
T/T,Western Union
Supply Ability
Above US$100 Million
Product Description
WT-62-AK Small Size GPS Module For Portable Devices
Product Specifications
| Attribute | Value |
|---|---|
| Model Number | WT-62-AK |
| Type | GNSS Module |
| Country of Origin | CHINA |
| NMEA messages | RMC, VTG, GGA, GSA, GSV, GLL |
| Voltage | 1.8V to 3.6V |
| Power consumption | 23 mA @3.3V |
| Size | 12.2mm × 16mm × 2.4mm |
Product Overview
Applications
- Vehicle and ship positioning and navigation
- Time Service
- Wearable devices
- Mobile phones, tablets and other portable devices
Key Features
- Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning
- Antenna detection circuit with short circuit protection
- Low power consumption with high sensitivity
Module Pin Allocation (Bottom View)
Technical Specifications
| Model | WT-62-AK |
| Receiver type | BDS:B1I+B1C GPS/QZSS/SBAS:L1C/A GALILEO:E1 GLONASS:L1 |
| Protocol | NMEA-0183 compliant protocol or custom protocol |
| Available baud rate | 4800bps~921600bps (default 9600bps) |
| Channel | 56 |
| Sensitivity | Tracking: -162dBm Capture: -160dBm Cold start: -148dBm |
| Startup time | Cold start: Average 29 seconds Hot start: Average 1 second |
| Accuracy | Horizontal Position: average, SBAS < 2.5m |
| Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≤ 4G |
| Regeneration frequency | 1Hz - 10Hz |
| Positioning mode | A-GNSS |
| Ports | 2 UART 1 I2C 2 SPI |
| Physical property | 24 pin stamp holes Size: 16.0mm × 12.2mm × 2.4mm (±0.5mm) |
| Power supply | Voltage: 1.8V~3.6V Power consumption: Maximum performance: Capture: 23mA, tracking (power saving mode/1HZ): 5mA |
| Operating Environment | Humidity range: 5% to 95% non-condensing Working Temperature: -40℃ to 85℃ Storage Temperature: -40℃ to 85℃ |
