Mini GPS Module WT-11-UB Waterproof A-GNSS Tracking 10Hz Update
| Place of Origin | China |
| Brand Name | OTW |
| Model Number | WT-11-UB |
Product Details
Agreement:
NMEA-0183 Compliant Protocol Or Custom Protocol
Available Baud Rate:
4800bps~921600bps(default 9600bps)
Start-up Time:
Cold Start：Average 29seconds Hot Start：Average 1 Seconds
Sensitivity:
Tracking: -161dbm Hot Start: -148dbm Cold Start -148dBm
Dimensions:
10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Positioning Mode:
A-GNSS
Update Rate:
0.25Hz-10 Hz
Interface:
2 URAT 1 I2C 2 SPI
Highlight:
Small GPS Module Waterproof
,Waterproof OEM GPS Module
,OEM GPS Module Mini
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $2.4 - 11.80/
Packaging Details
Carton box
Delivery Time
5-8 working days
Payment Terms
T/T, AliPay, PayPal, Western Union
Supply Ability
10000 pcs/day
Product Description
Small GPS Module Waterproof OEM GPS Module Mini 0.25Hz-10Hz Update Rate
Key Specifications
| Agreement | NMEA-0183 Compliant Protocol Or Custom Protocol |
| Baud Rate | 4800bps~921600bps (default 9600bps) |
| Start-up Time | Cold Start: Average 29s | Hot Start: Average 1s |
| Sensitivity | Tracking: -161dbm | Hot Start: -148dbm | Cold Start: -148dBm |
| Dimensions | 10.1mm × 9.7mm × 2.4mm (±0.5mm) |
| Positioning Mode | A-GNSS |
| Update Rate | 0.25Hz-10Hz |
| Interface | 2 URAT, 1 I2C, 2 SPI |
Product Overview

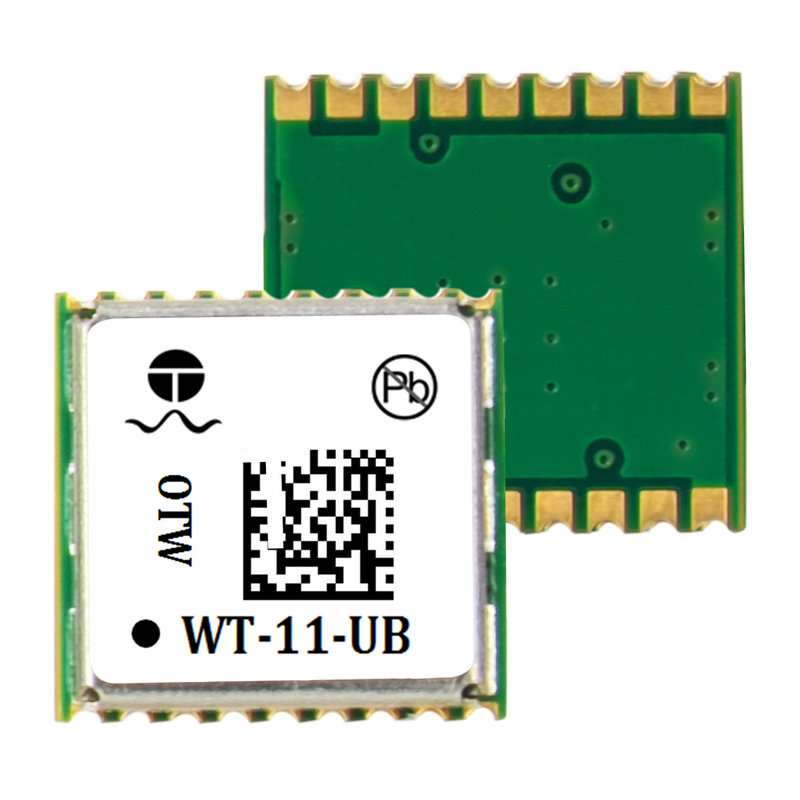

The WT-11-UB GPS Module is a compact and powerful location tracking device that utilizes the Global Positioning System to provide accurate navigation information. Compliant with NMEA-0183 protocol (with custom protocol options available), this module features high sensitivity (-161dBm tracking) and rapid start-up times for reliable performance in various environments.
Key Features
- Model: WT-11-UB with 56 channels
- Operating Temperature: -40°C to 85°C
- Compact dimensions: 10.1mm × 9.7mm × 2.4mm (±0.5mm)
- Multiple interfaces: 2 URAT, 1 I2C, 2 SPI
- Power supply: 1.4V~3.6V
- Horizontal position accuracy: SBAS < 2.5m average
- Supports GPS/QZSS L1 C/A and GLONASS L1
Applications
The WT-11-UB GPS Module is ideal for various industrial and commercial applications:
- Vehicle and marine navigation systems
- Fleet management and asset tracking
- Outdoor activity devices (hiking, camping, geocaching)
- Emergency services and personal tracking
- Smart city infrastructure and IoT devices
- Mobile devices including smart watches and walkie-talkies
Customization Options
We offer flexible customization services for the WT-11-UB GPS Module:
- Protocol customization beyond standard NMEA-0183
- Minimum order quantity: 1 piece
- Competitive pricing at $3.80 per unit
- Fast delivery: 5-8 working days
- Multiple payment options: T/T, AliPay, PayPal
Packaging & Shipping
Each GPS Module is securely packaged in a sturdy carton box with protective foam inserts. We ship worldwide via reliable carriers (UPS/FedEx) with full tracking. International shipments include all necessary customs documentation.
Frequently Asked Questions
Q: What is the brand and model of this product?
A: OTW brand, model WT-11-UB
Q: Where is this product manufactured?
A: Manufactured in China
Q: What is the production capacity?
A: Supply capacity of 10,000 pieces per day
Q: What are the payment terms?
A: We accept T/T, AliPay, and PayPal
